Digger Wrench-N-Ride Auger Carrier Mount
$41.99
Tags:
A simple solution to mount the Digger Auger Carrier to select ATV racks.
Instructions:

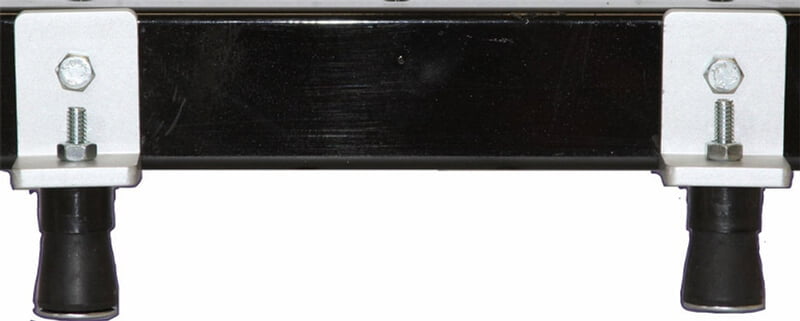

- Insert the rubber side of the Wrench-N-Ride expansion plugs into the holes in the deck of your ATV rack.
- Tighten the nut on the topside of the L-Bracket until the rubber expands inside the hole of the rack.
- After both L-Brackets are firmly secured on the composite rack place the Auger Carrier against the uprights of the L-Brackets.
- Once placed against the uprights of the L-Brackets, mark the holes onto the carrier to be drilled.
- Remove the Auger Carrier and drill the marked holes with a 1/4” drill bit.
- After drilling the two holes, place the Auger Carrier against the upright angles and bolt both together with supplied bolts and lock nuts.
