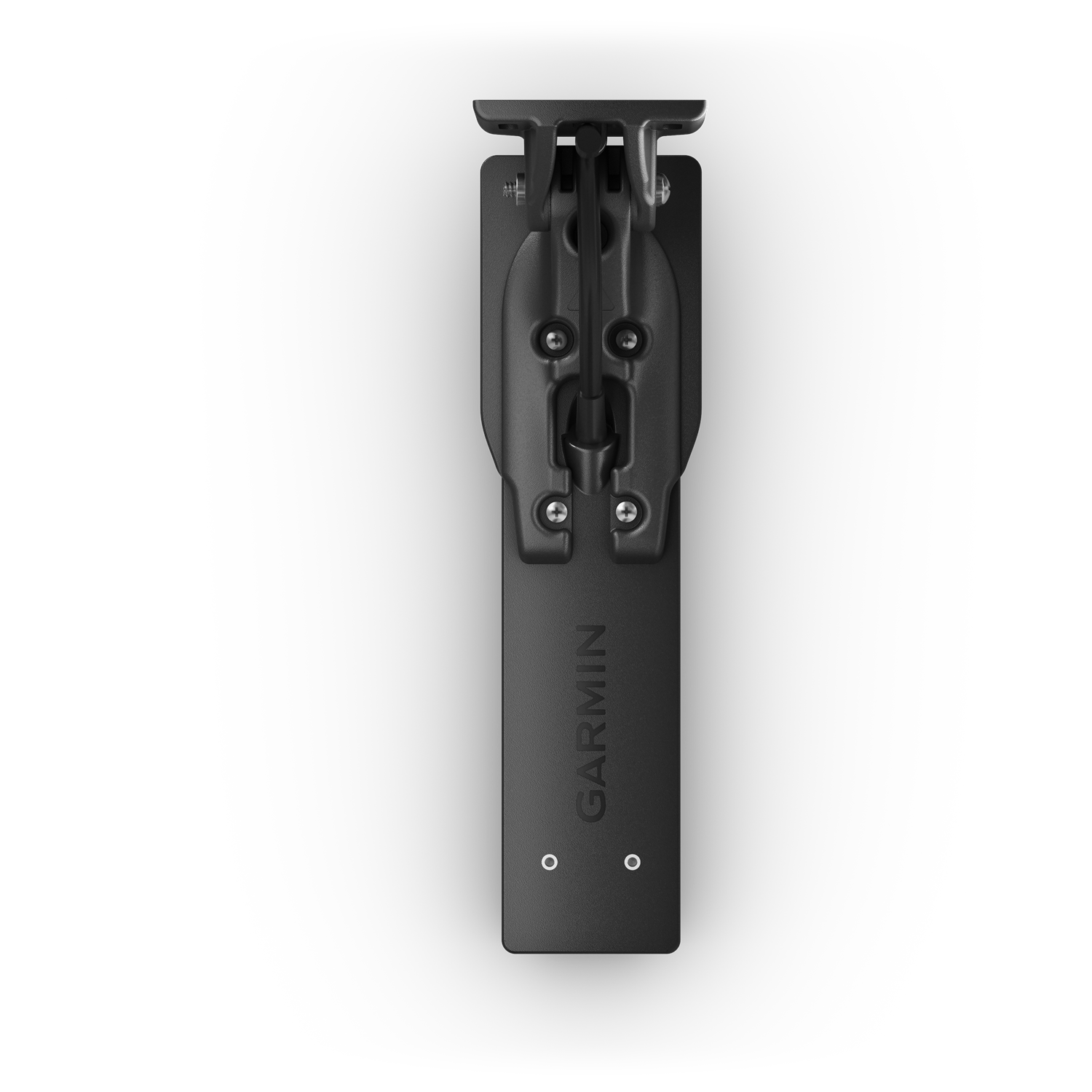

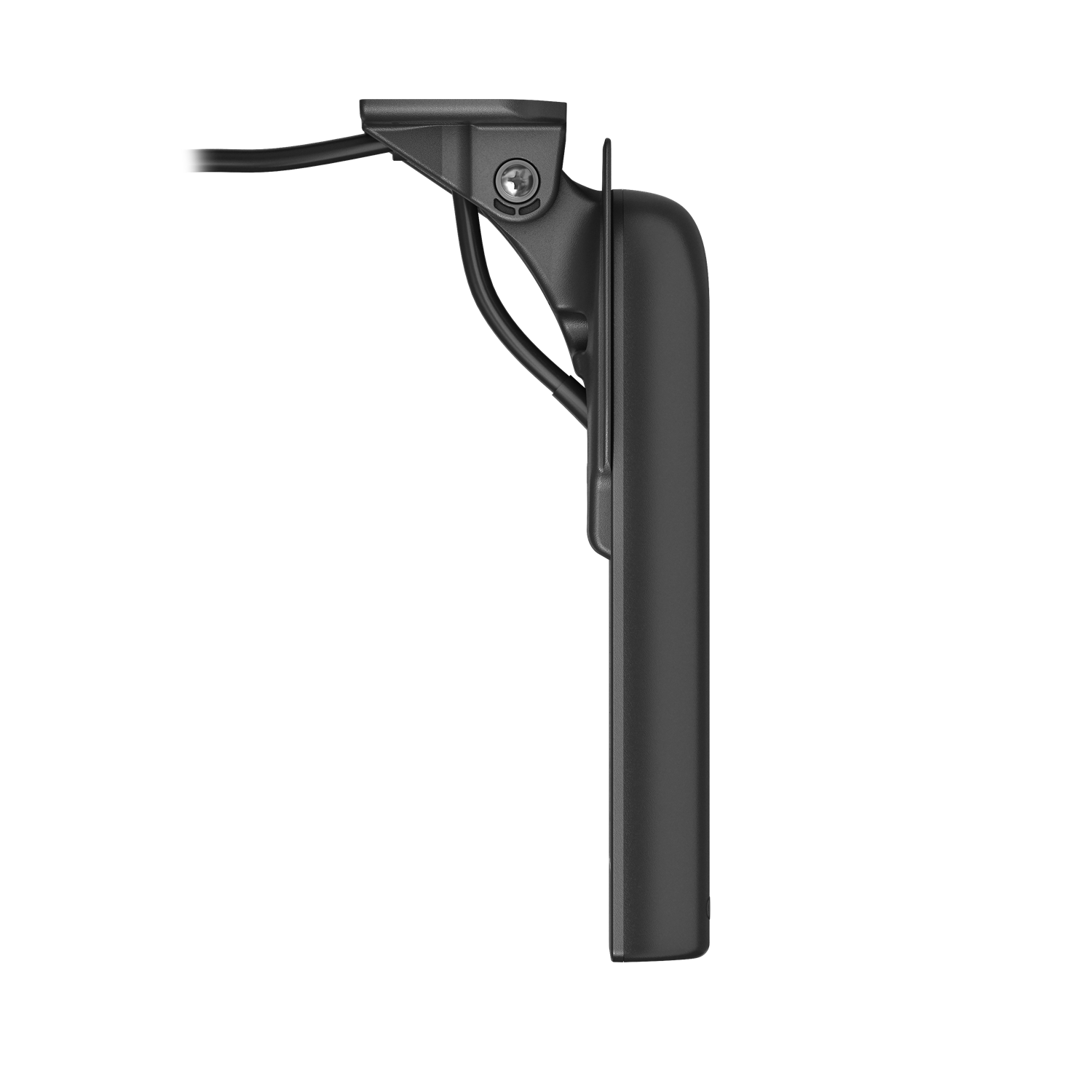

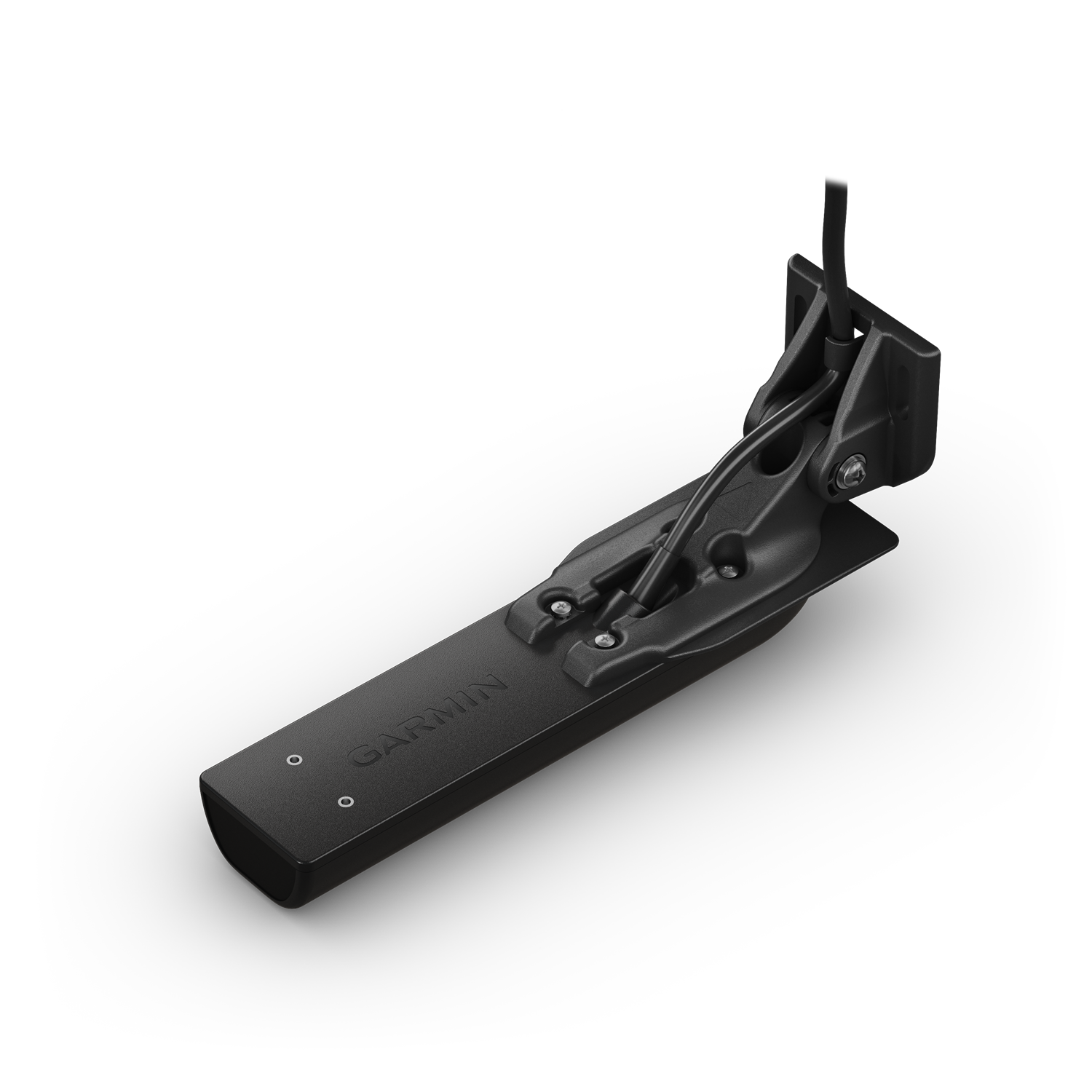

Garmin GT56UHD-TM Transducer
$689.99
Tags:
This all-in-one transducer combines Ultra High-Definition ClearVü and SideVü scanning sonars with high-wide CHIRP traditional sonar to give you complete visibility below and around your boat. Multiple sonar frequencies adapt to any depth, while vivid color imaging reveals targets and structure with exceptional clarity. Flexible mounting options—transom, trolling motor, or thru-hull—let you install it your way. Spend less time searching and more time catching.
Product Details
- Transducer frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
- Transducer power: Traditional 350 W; ClearVü/SideVü 500 W
- Transducer beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz
- Transducer maximum depth: Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
- Transducer cable length: 25 ft
- Transducer depth/speed/temperature: Depth and temperature
- Transducer number of pins: 12
- Transducer supported deadrise/transom angles: 0°-70° degree transom (GT56UHD-TM)
